K Bike Wiring Diagrams



BMW

Files in PDF format are text searchable.

Third Party

K75 & K100

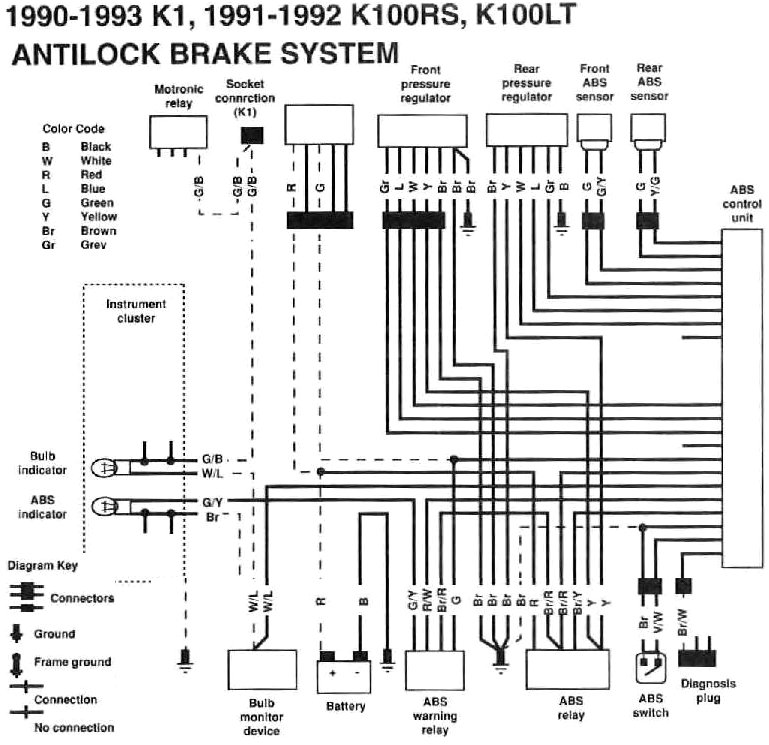

K75.K100.ABS.Wiring.SLP.V1.0.pdf

The following also apply to K1 & k1100:

Heated.Grips.Wiring.HG.SLP.V1.0.pdf

Additional.Instruments(Fuel&Temp).SLP.V1.0.pdf




K75

Except for the coil wiring these also apply to K100s.

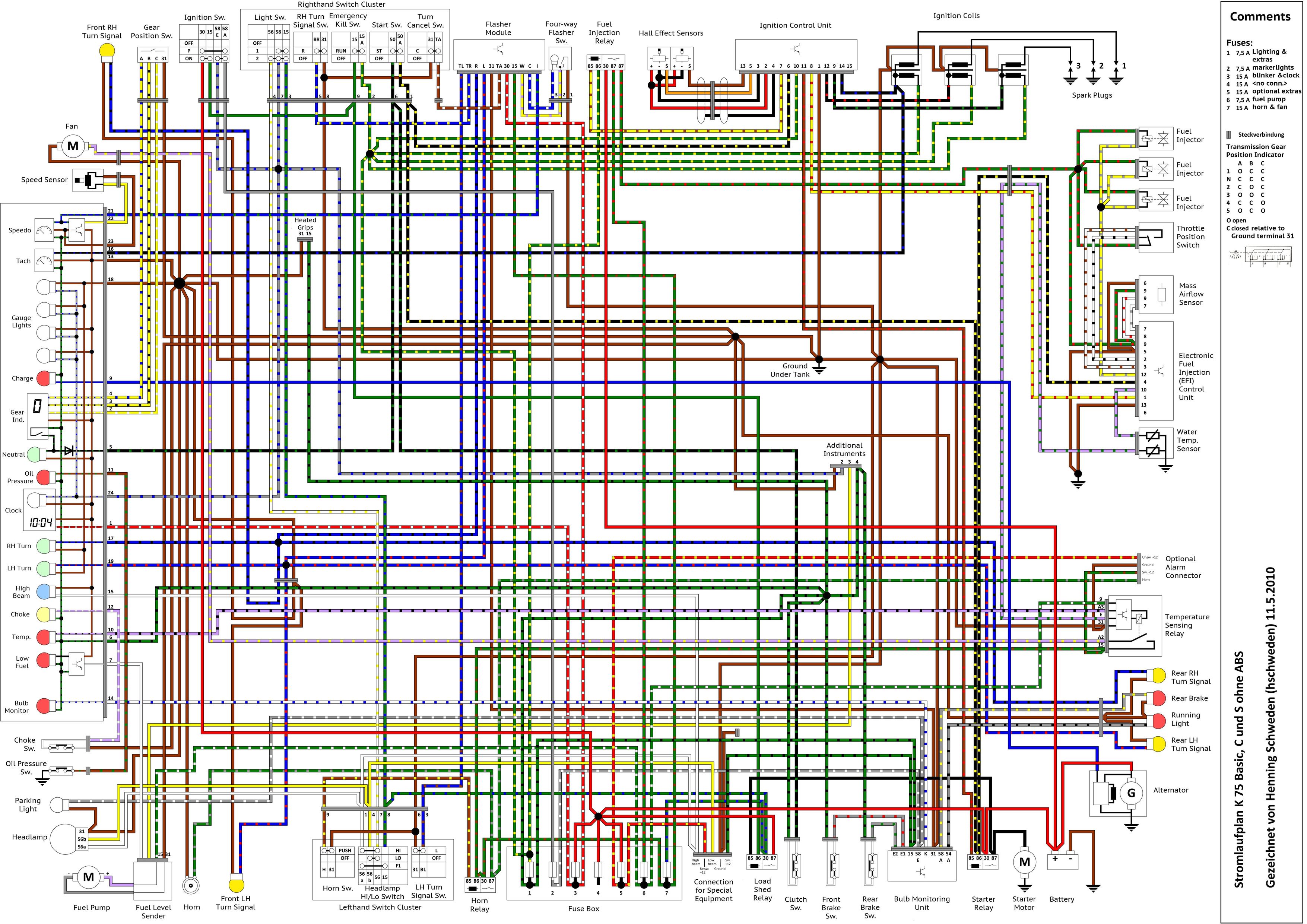

Early.K75C.Wiring.V4.0.pdf

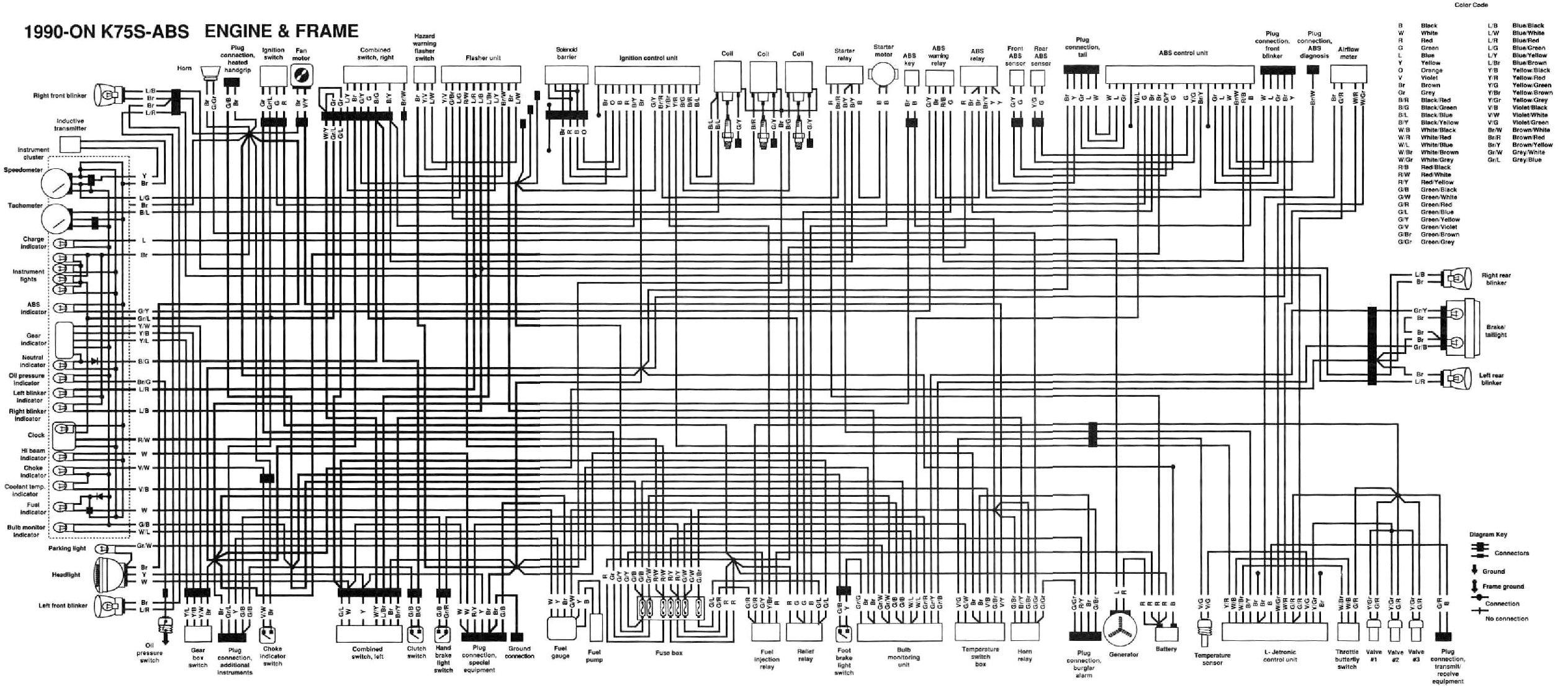

K75 K75S-ABS.90-On.Wiring.SLP.V1.0.pdf

K75RT.ABS.US.SLP.Wiring.Fuses.Relays.V4.1.pdf

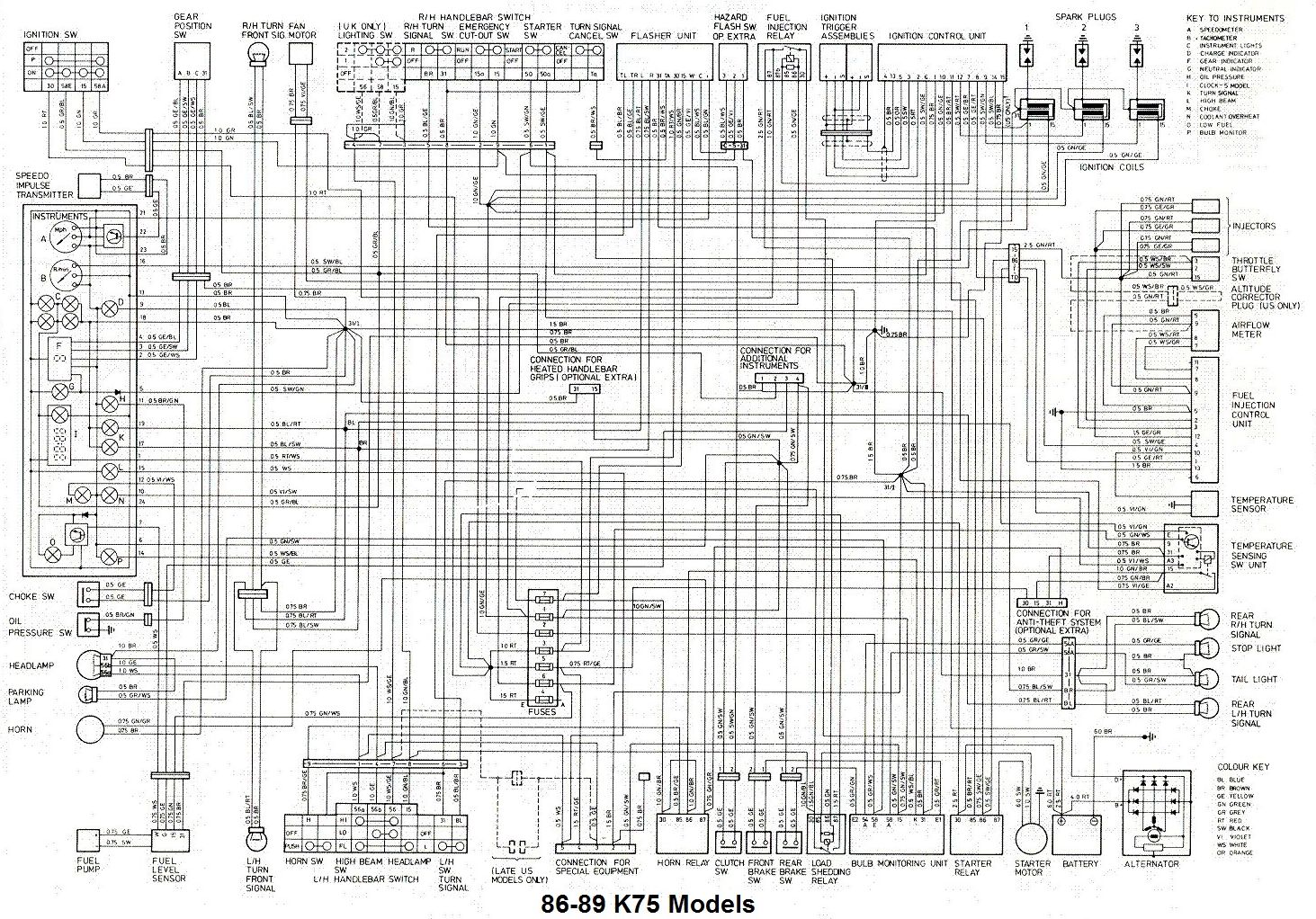

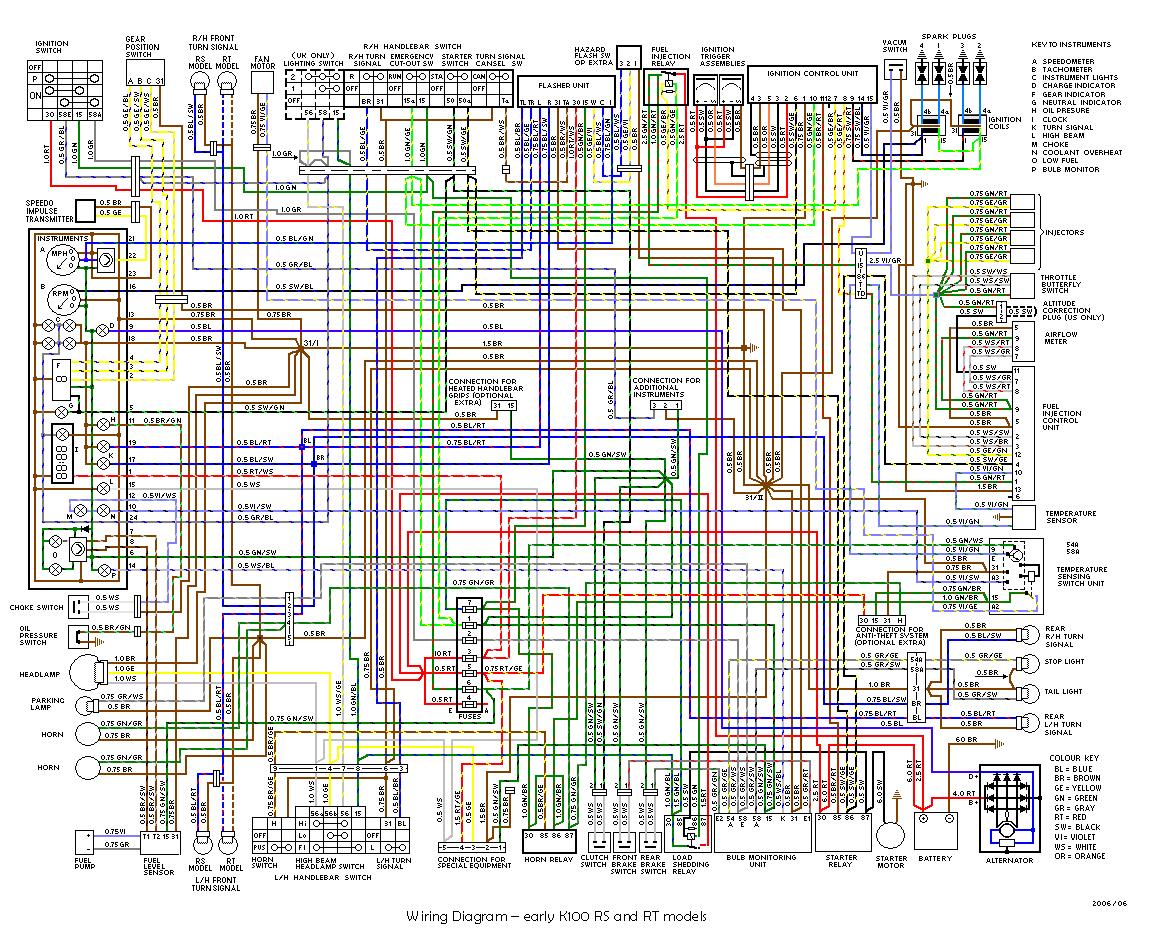

Early K75 Std. K75C K75S Color (non-ABS)








K100

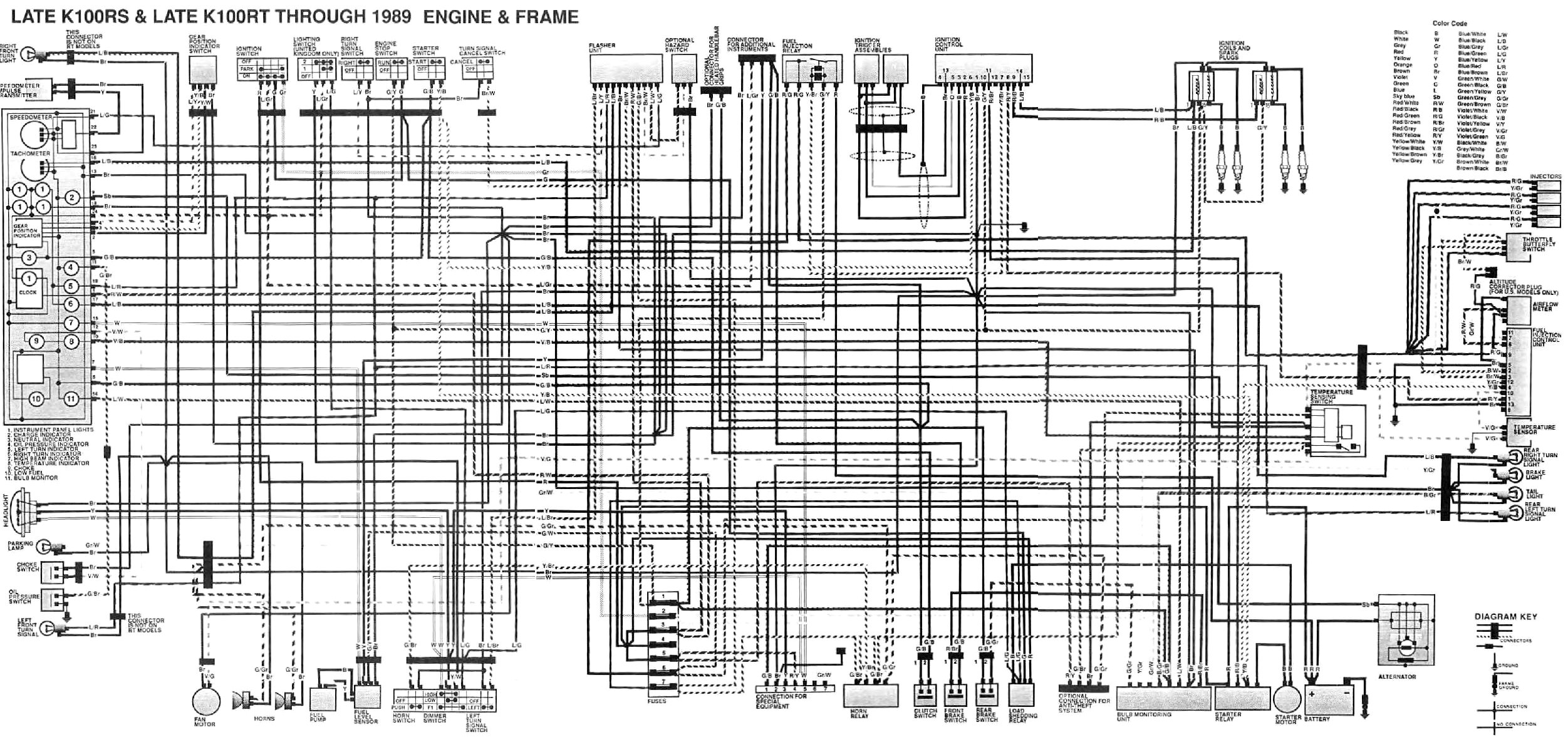

K100.1986-On(Non-ABS).V1.0.pdf








K1

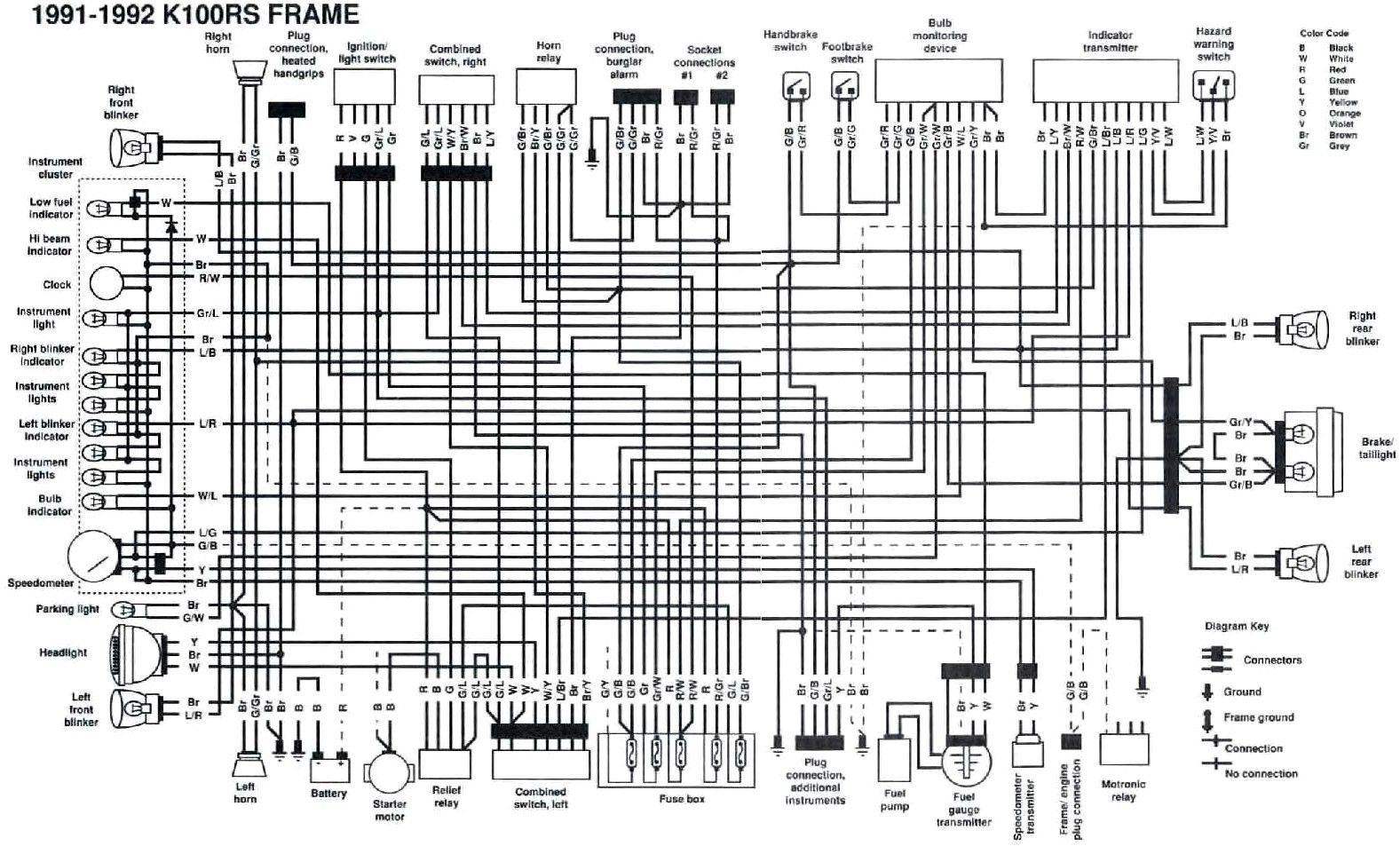

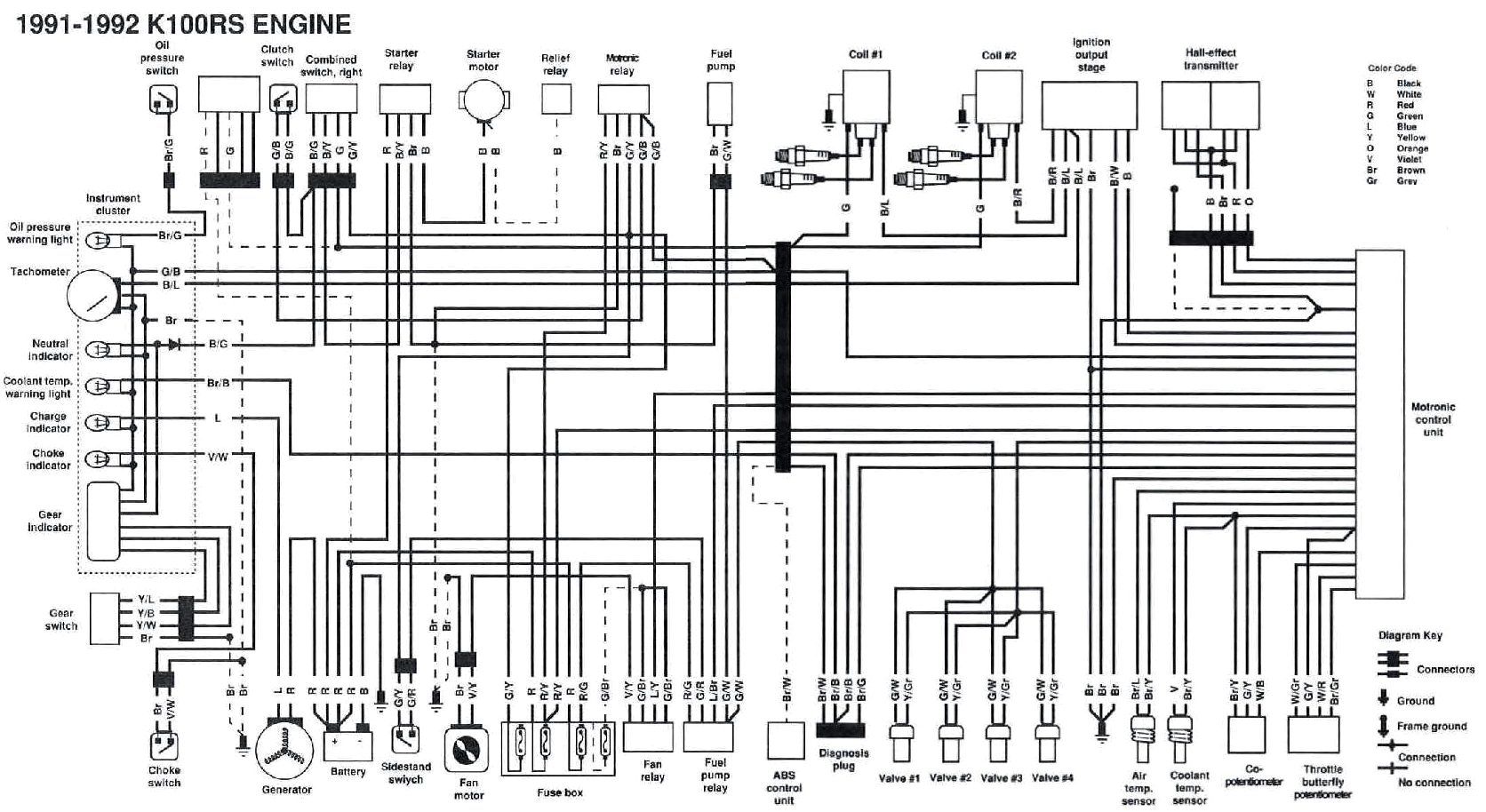

K100RS4V

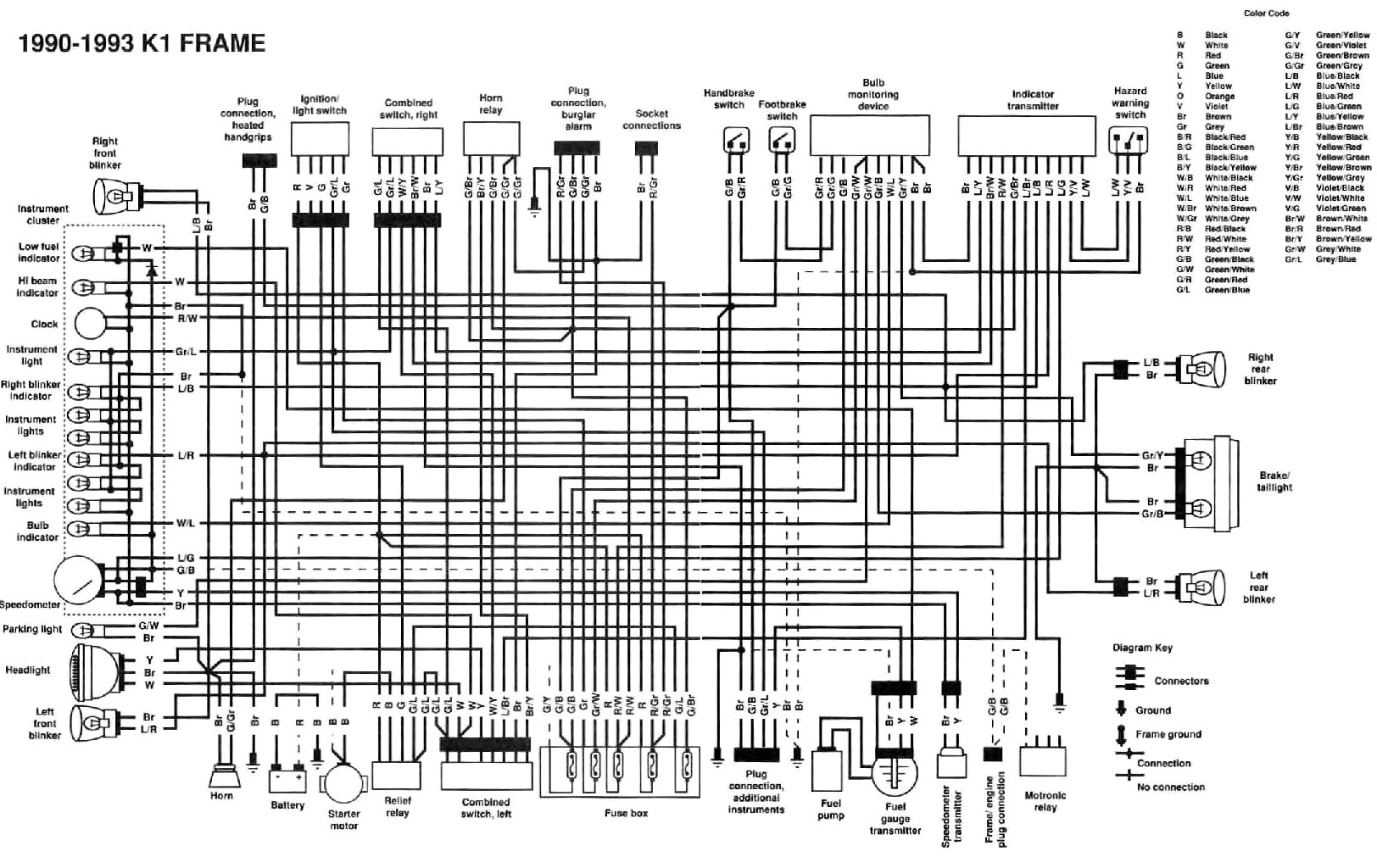

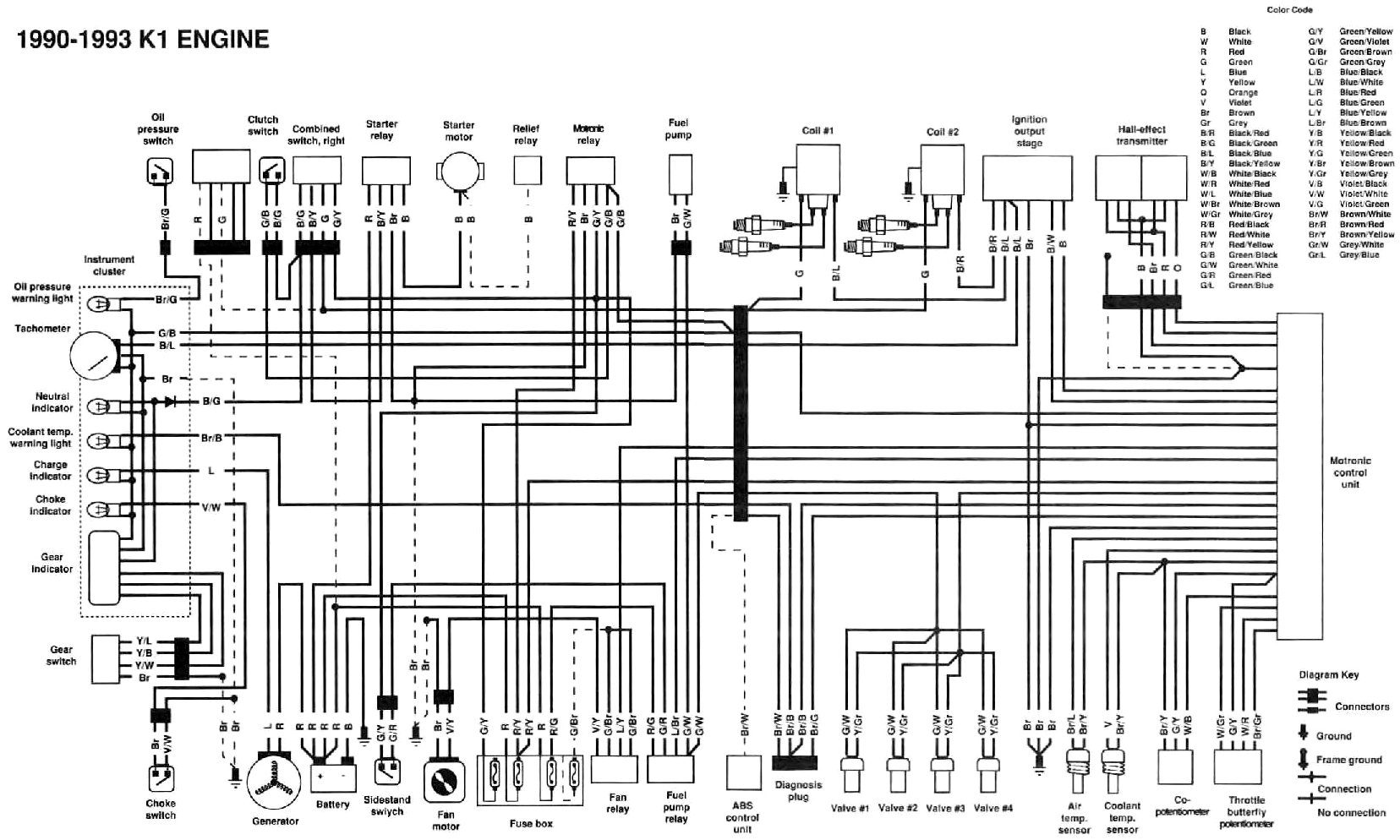

K1.SLP.Wiring.Diagram.V2.0.pdf

(Also applies to K100RS4V)






K1100

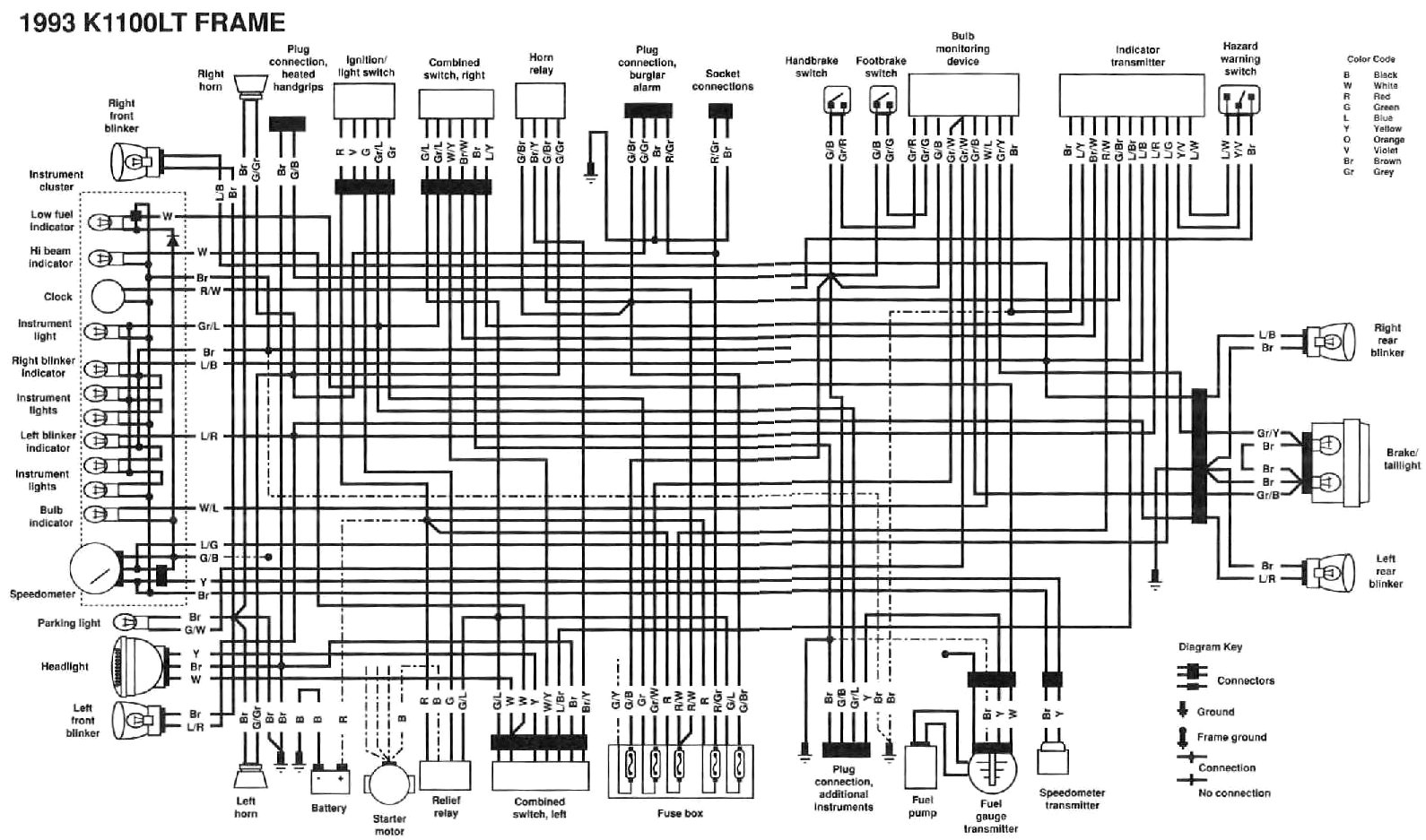

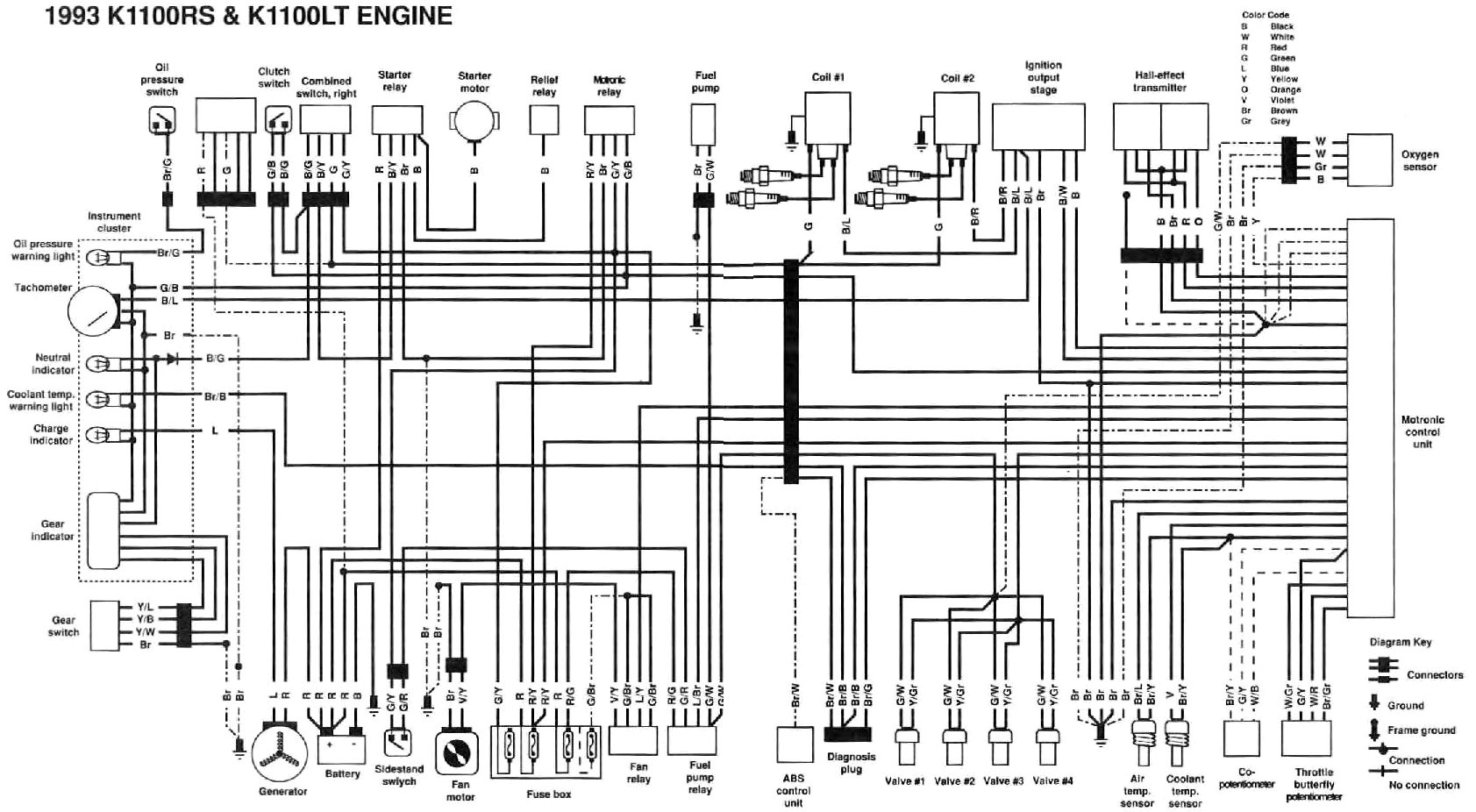

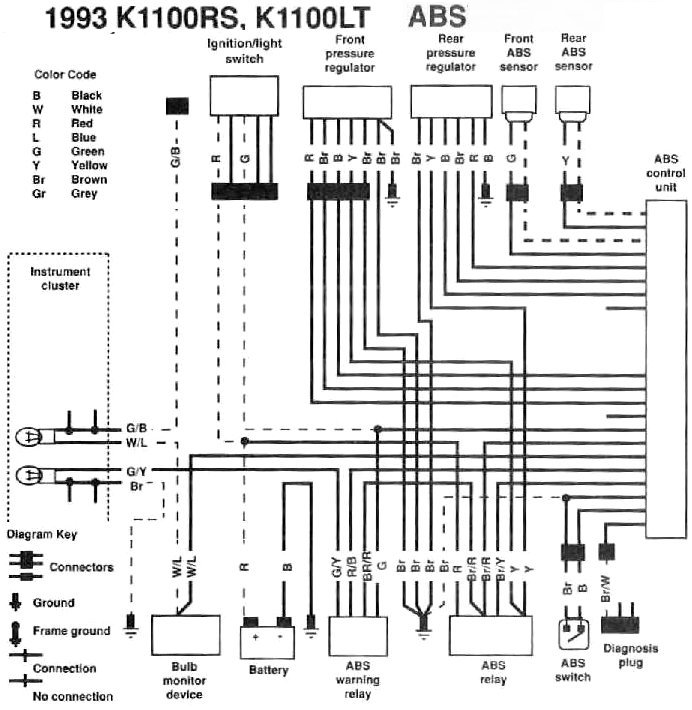

1993.K1100LT.Wiring.SLP.V2.0.pdf

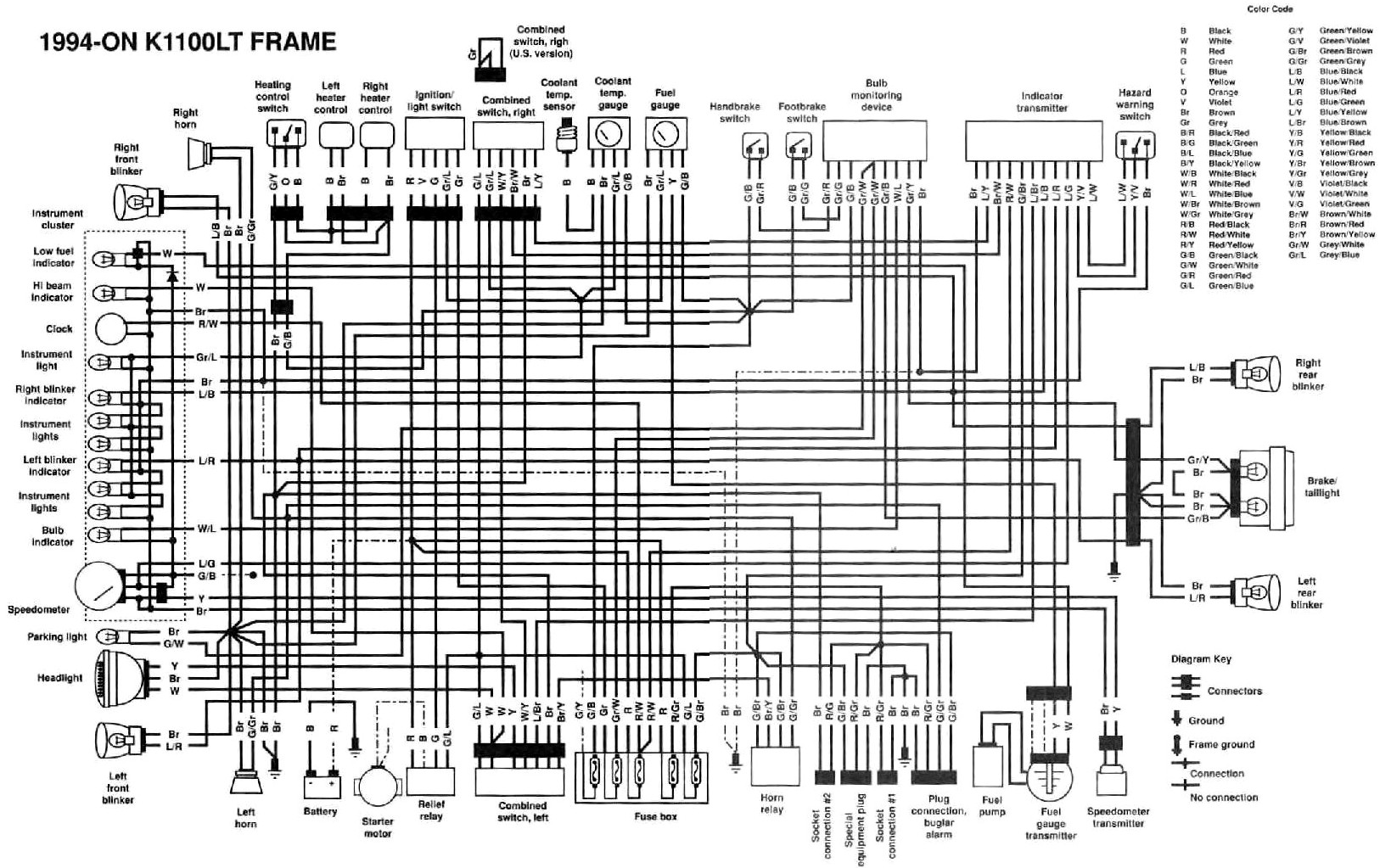

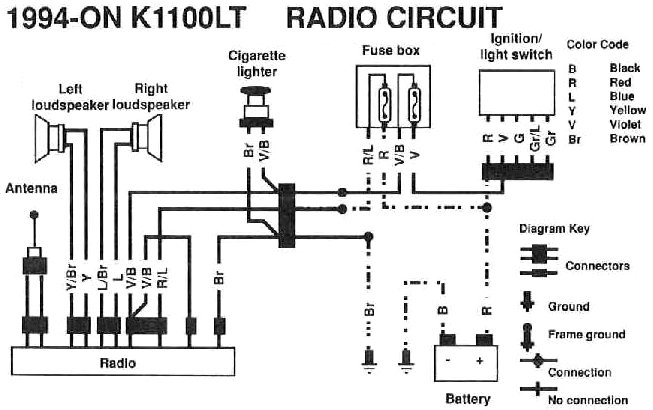

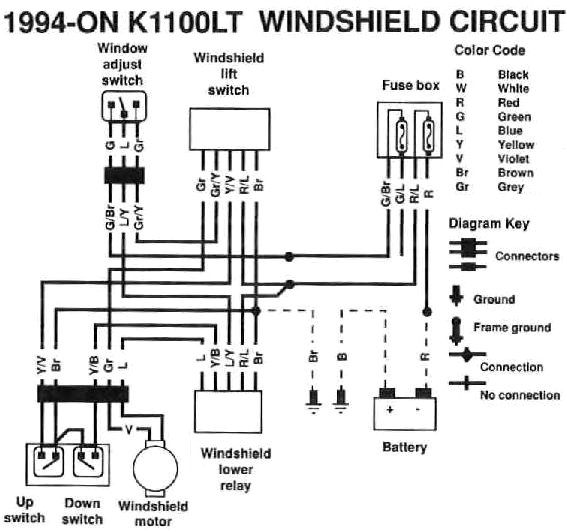

1994-On.K1100LT.Wiring.SLP.V2.0.pdf

K1100RS.94on.Wiring.SLP.V2.5.pdf

1993 & Earlier









1994 On







K1200RS

(97-00)

K1200RS.SLP.Wiring.V1.0.pdf





Relay info can be found at this link.
