Welcome to my "Other Stuff" page. This page contains things that are not necessarily standard BMW parts but are useful for maintaining, modifying or upgrading your K bike.

Contact: kbikeparts@gmail.com

Be sure to hit the F5 key on your keyboard to see if anything new has been added since your last visit.

Return to main page.



Applies to


(click to enlarge)

Name

Description

Price

(US $)

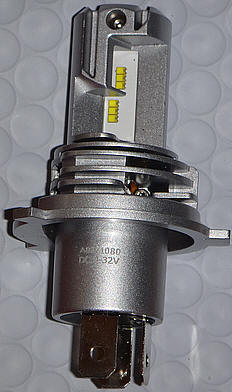

NEW FOR 2020 - H4 LED Headlight Bulb

All K bikes

LED H4 Headlight Bulb

63121354619

Nice bright white LED headlight. No dark spots. Good low beam cutoff that does not blind oncoming traffic. Only 27W for either beam so causes less wear on the high beam/low beam switch. Plug-n-play.



(I use these in my K bikes. Much to my surprise, it even works pretty well in the crappy K75S headlight.)

$25

(The above photo is an actual side by side comparison that I performed in the RS/RT/LT headlight.)

NEW FOR 2020 - Stainless fill plugs for the transmission and final drive.

The finish on the factory fill plugs doesn't hold up very well over time.

All K bikes

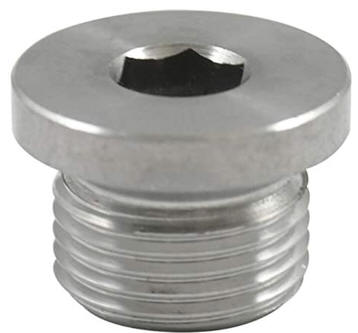

304 Stainless Steel Transmission Fill Plug

07119905428

Can also be used as engine oil drain plug.

$8

All K bikes

304 Stainless Steel Final Drive Fill Plug

33111451349

Works for both monolever and paralever final drives.

$8



NEW FOR 2021

All K bikes

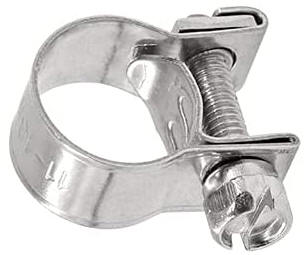

Fuel Injection Hose Clamp

13311460928

304 Stainless Steel Hose Clamp - Same style clamp that BMW uses. Better than worm drive clamps. Used for external fuel line connections as well as inside the gas tank. Can also be used to replace the 2 one-use Oetiker clamps that BMW uses on the fuel pressure regulator.

$2

All K bikes

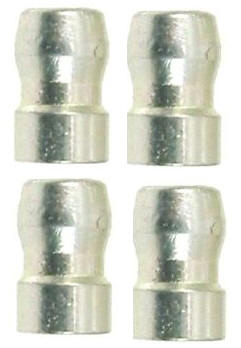

Spark Plug Terminal Nuts



NGK spark plugs are good spark plugs but they come with threaded tips and no terminal nuts. In order to get K bike spark plug leads to properly seat on NGK spark plugs you need these screw on terminal nuts.

Set of 3 - $4



Set of 4 - $5

K75, K100, K1

93 and earlier K1100

  "Quick Release" Battery Ground Knob Replaces bolt that connects battery ground cable to left side of transmission. Allows “quick” disconnect by hand if the starter relay sticks. Also handy for storing bike for with no access to trickle charger.

$5

All K bikes

Viton Clutch Nut O-ring

11211460467

An o-ring made of Viton that is better and longer lasting then the rubber BMW OEM o-ring

$3

All K bikes

New for 2024! Viton Fuel Level Sender O-ring

62161459608

An o-ring made of Viton that is better and longer lasting then the rubber BMW OEM o-ring. BMW spec is 45x4.5 but these are 45x5 to seal better.

$7

All K bikes

4 Stainless Steel Gas Cap Screws

07119904433

Not only do they look nice every time you gas up but they also make fuel filter changes easier.

$3/set

K75, K100(2V)

Vacuum Hose

11727545323

BMW OEM vacuum line between the fuel rail and fuel pressure regulator. (Hose only, reuse your old "spring" that protects it.)

$8



K75, K100, K1100

LED Instrument Cluster Upgrade

Click Here



All BMW Bikes

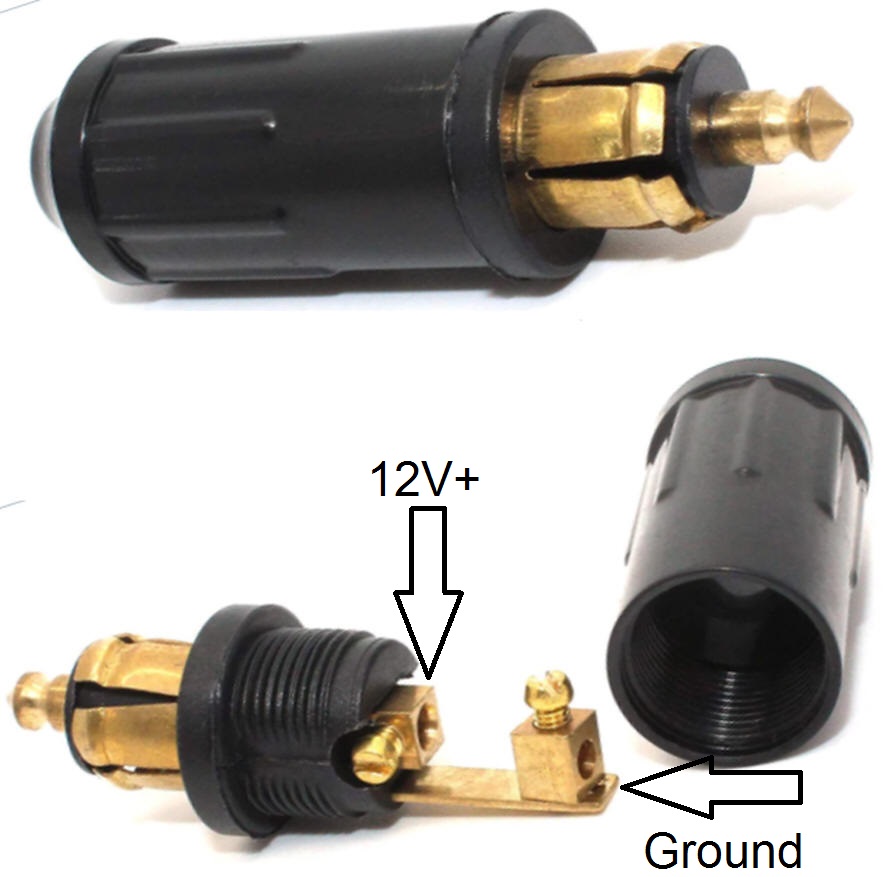

"Powerlet" Style Power Plug

Good for using with a battery tender (the power socket above the coils is unswitched and good for battery tending), heated gear or whatever else you want to power from your K's power sockets.  No soldering required. Click the picture to the left to enlarge.

(Note that these are not Powerlet brand plugs but quality third party plugs. However everyone generically calls this type of plug a Powerlet plug so that's why I list them this way.)

$6

All K bikes

NE-8 Key

Not a BMW OEM key but an aftermarket key blank that works for K bikes. Alloy.

$5

All K bikes

NE-7 Key

Not a BMW OEM key but an aftermarket key blank that works for K bikes. Steel - usually needs to be cut at a "real" locksmith.

$8

All K bikes

Lost Key Service

Click here for  details



Also many R bikes from 1976-1995

$70

U.S. Only

(Canada $80 USD)

All K bikes

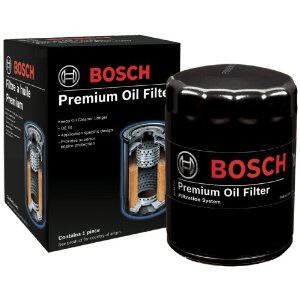

Bosch Premium Oil Filter

Same size as the BMW one and what I use in my K bikes. (Be sure to remove the sticker prior to installation.) 11421460845

$6

All K bikes

K Bike Oil Filter Wrench

..

$10

All K bikes

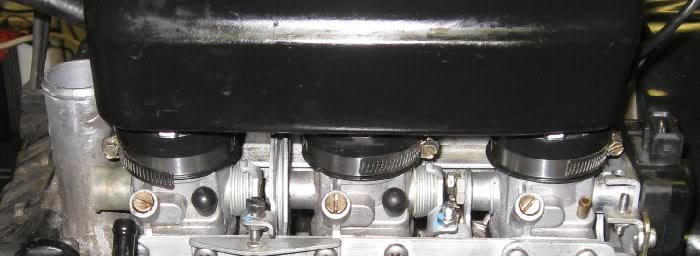

Stainless Steel Throttle Body Hose Clamps

As K bikes age it is not uncommon for the rubber boots below the throttle bodies to crack and leak air due to age and repeated heat cycles. BMW used one-use Oetiker clamps in some locations on these boots.  When replacing those boots I cut off the old clamps with a Dremel cutting wheel and replace them with these slim re-usable stainless steel hose clamps. 11611460940 11611460900 11611460901

$3 ea

All K bikes

Fork Boots

Listed on main page. Click here.



All 1993 & Earlier K Bikes

50 Amp Alternator Upgrade

Click here for more info. 12312306020

(Except for the 1993 K1100RS which came from the factory with a 50A alternator.)

$150

Gen 1, 2 & 3 System Cases

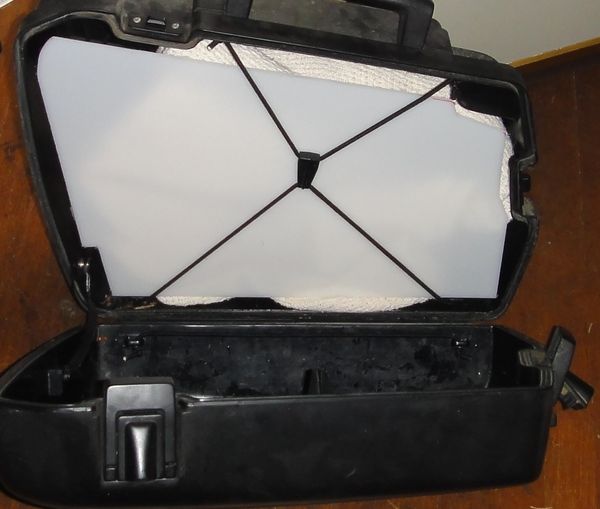

Retainer Panels

Tired of stuff falling out when you want to get something out of a system case while it's on the bike?  These retainer panels solve that problem by keeping items from falling out of the inner half of a system case. They're made from 1/8" thick high density polyethylene so they're virtually indestructible and will outlast your bike.

(They're also good for fanning you campfire to help get it started.)

$30/pair

Gen 3 System Cases

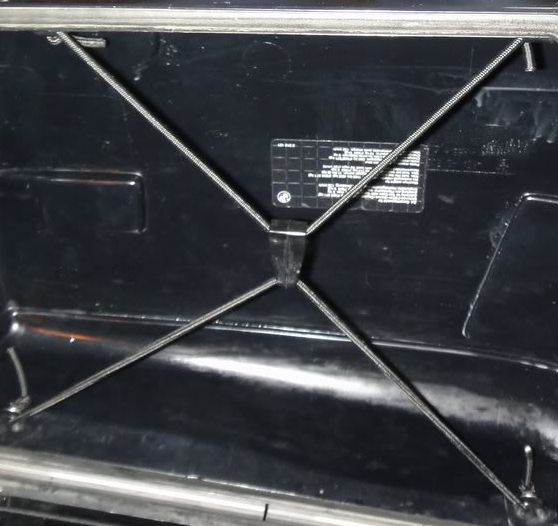

Elastic Upgrade Kit

Bungee cord works much better than the weaker OEM elastic that doesn't last very long under regular use.  This kit includes 8 pre-cut segments of Bungee cord and sixteen stainless steel washers. Simply run the Bungee cord through the attaching point, put a washer over it and tie a figure eight knot.

(This is only for Gen 3 System cases with round locks that point outwards.) 46542315753 46542315753

$12

K1100RS

Side Cover Clip Repair Kit

When the middle mounting clip breaks on your K1100RS side cover there's no need to buy a whole new side cover.  Cut the old one off, drill a hole in the middle of it install one of these nylon coated steel clips with a spacer. Kit includes clip, spacer, small bolt and lock-nut.

$8

(for one kit)

K1100RS

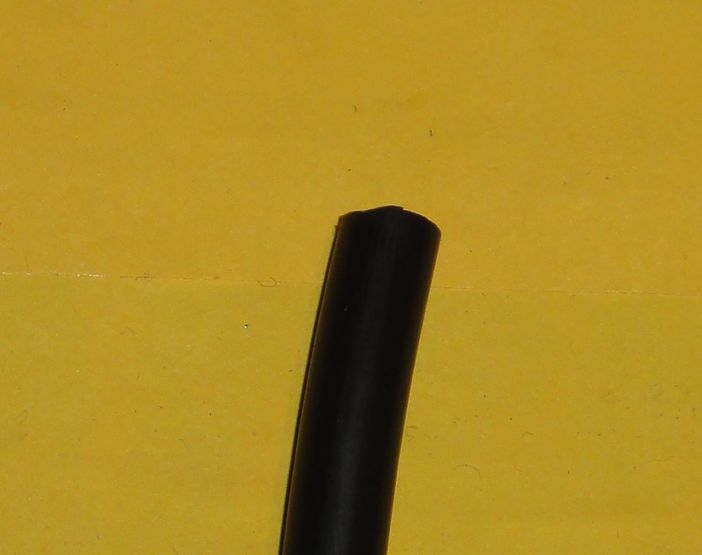

Side Cover Post Hose

Is your post rubber hose lost or used up?  Vacuum hose will work but it's a little larger diameter so isn't a perfect solution.  The inside and outside diameters of this hose are identical to the OEM hose and do a better job. Sold in 20mm segments. 16131455350 46632307423 46632307424

$1 ea

K1100RS

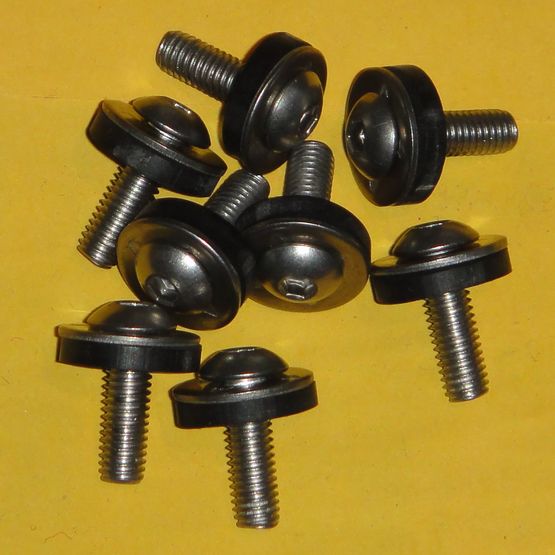

SS Belly Pan Mounting Hardware

Set of 8 stainless steel button head machine screws, 8 stainless steel fender washers and 8 rubber washers that go behind the SS washers to protect your paint. (These screws have the same thread and pitch as the factory screws.) 46632308632

$12

K75s & 2V K100s

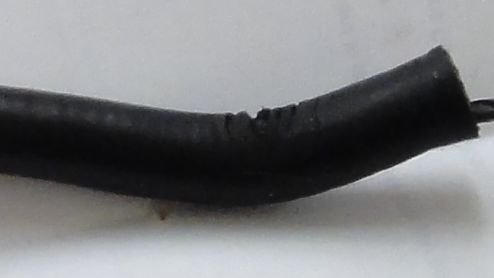

Typical cracked original fuel line:



Note: The line from the fuel rail goes to the rear pipe at the front left of the tank. The fuel line from the tank's front pipe goes to the fuel pressure regulator which is located behind (inside of) the throttle body assembly.

2V External Fuel Line Replacement Kit

If your fuel lines are getting old and cracking then you may be considering replacing them.  Replacing them with BMW parts costs over $70 and you'll need to deal with the two one-use Oetiker clamps that attach the fuel lines to the fuel pressure regulator. This kit includes enough new fuel line and two  reusable fuel line clamps to replace the one-use Oetiker clamps. The fuel line is ethanol/methanol certified made for fuel injected systems and rated to 225 psi. It's just my personal opinion but I think you're better off using straight line as the OEM lines always seem to crack at the pre-angled parts of them.3311461096 13311461011 13311461011 16121180409

$25

K100RS4V, K1 & K1100s

4V Fuel Line Replacement Kit

If your fuel lines are getting old and cracking then you may be considering replacing them.  Replacing them with BMW parts costs about $70 and you'll need to deal with the two one-use Oetiker clamps that attach the fuel lines to the fuel pressure regulator. This kit includes 4 feet (enough for the three lines you need to replace) of new fuel line and two reusable fuel line clamps to replace the Oetiker clamps. The fuel line is ethanol/methanol certified made for fuel injected systems and rated to 225 psi. It's just my personal opinion but I think you're better off using straight line as the OEM lines always seem to crack at the pre-angled parts of them. 13311461973 11151461834 13311461971

$30

All K Bikes

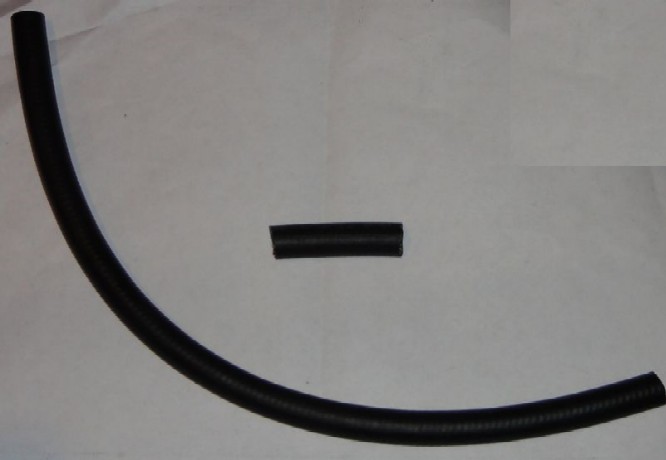

Internal Fuel Line Replacement Kit

Two sections of BMW OEM 8x13 submersible fuel line to replace the fuel lines inside any classic K bike tank.

16121180040

$25

93 & Earlier K Bikes



Internal Hose From Bottom Of Fuel Pump To Fitting Near Gas Cap

This supposedly reduces cavitation below the fuel pump.

$8

K100RS & K1100RS

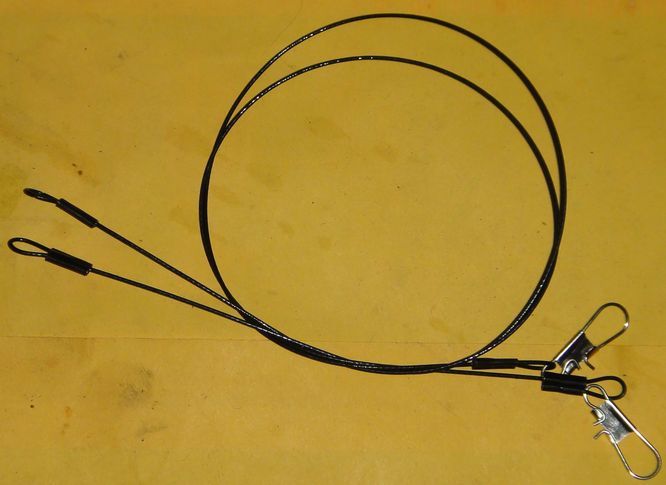

Mirror Leashes

These coated stainless steel mirror leashes keep your mirror assemblies from crashing to the ground if one of your mirrors gets knocked off or falls off of it's mounting clips.

$6/pair

K100RS4V & K1100RS

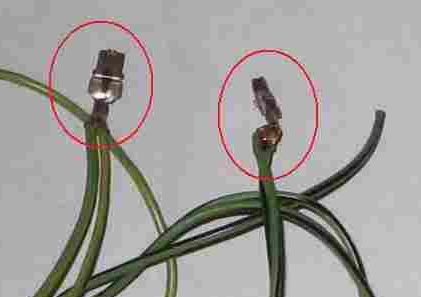

"Add-a-Fuse"

Both the K100RS4V and the K1100RS have three unused positions in the bottom of the factory fuse block.  If you're like me and don't like inline fuses for electrical items you've added to your bike then it is pretty easy to utilize those fuse positions. (I can show you how.) However, you need the proper terminals.

I've carefully salvaged several of them from the fuse blocks from bikes I've taken apart for just that purpose. I have them available in several wire sizes.  Being European, they are sized in mm2.  Here's their approximate equivalent in AWG wire sizes:

Wire Size

AWG Equivalent

0.5

20

1.0

16

1.5

15

2.5

13

Of course you can never have too large a wire for any application but you don't need 2.5 wire to charge a USB device, power your GPS or other small load applications.



Terminal Pairs:



IN

OUT

1.0

1.0

$10

1.5

1.5

$12

1.5

1.0 & 0.5*

$14

2.5

1.5 & 0.5*

$15

2.5

2.5

$15

* Terminal has two wires. Useful if you want to run multiple circuits through one fuse.

K100RS4V, K1 & K1100s

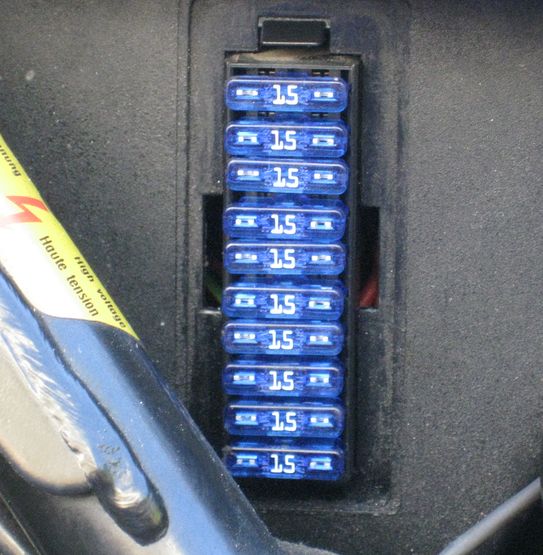

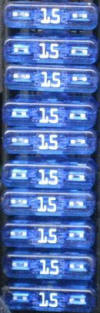

10 15A Fuses

Set of ten new 15A fuses.

(Just the fuses. Fuse block not included.)

$5

All K Bikes

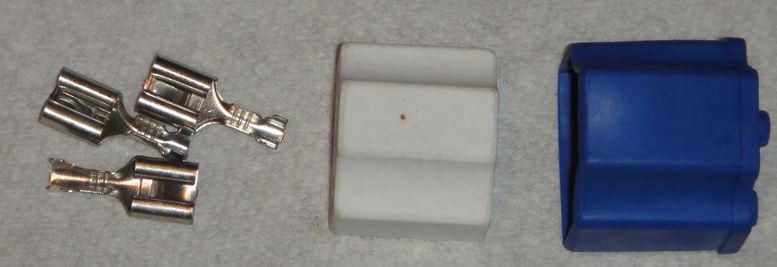

Ceramic H4 Headlight Socket

Handles heat better than plastic.  Useful if you're adding headlight relays. Includes ceramic h4 socket, plastic cover and three terminals as pictured. (I have run out of blue ones but do have yellow ones.)

$5

All K75 models

Zombie Apocalypse Preparedness Kit

Includes:

Brand new K75 short block engine (black)

55 gallon drum of Mobil 1 15W-50 motor oil

20 oil change kits

10 fuel filters

2 sets of water pump seals

6 pair of triple Kevlar banded run-flat dual sport tires

Quick-release bracket for medieval mace that attaches to handlebars (mace not included)

Unbreakable aluminum baseball bat with ever-sharp titanium spikes and riding sling

Pair of Touratech "Samurai" anti-zombie front axle spikes

10 year supply of Mountain House freeze-dried scrambled eggs with bacon

$7,999

SALE!!!

$6,999
