K Bike Fuses

7.5 Amp Fuse

BMW Part 61131372524

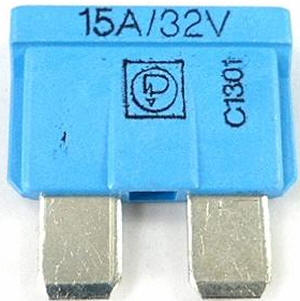

15 Amp Fuse

BMW Part 61131372526

The fuses are color coded with standard colors. The 7.5 amp fuse is brown and the 15 amp fuse is blue.

Location:

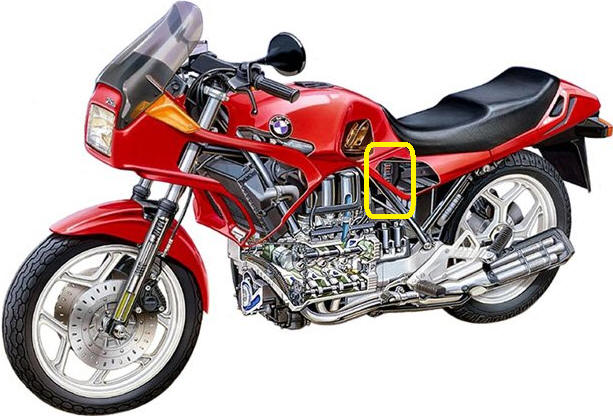

The fuse block on a K bike is located below the left rear of the gas tank under the left side cover.

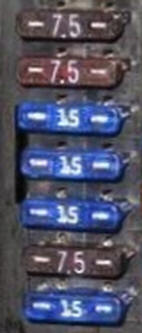

Types and numbers of fuses by model:

Model

7.5 Amp

15 Amp

K75

K100 (2 valve)

3

4

K1

K100RS4V

K1100RS



7

K1100LT



9

How To Tell If A BMW Fuse Has Blown:

The BMW fuses have an exposed wire on the back of them. When the fuse blows that wire melts to disconnect the circuit so you can visually tell if a fuse is blown. It's a tiny wire so you have to look closely to see if the fuse has blown.

Fuse Size:

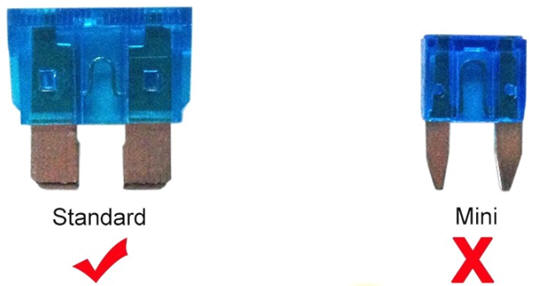

You can also use generic standard ATC fuses in lieu of the BMW factory fuses. (Not to be confused with Mini ATC fuses.)

To see if a generic ATC fuse is blown you need to pull the fuse to see if the wire inside of it has melted.

Direction:

The forward (left) side of the fuses is the input ("hot") side of each fuse.

Input 4 4Outputs

Fuses For K75 & K100(2V):

#

From

Wire

Fuse

Wire

To

1

Kill Switch

Grn/Yel

7.5

(Switched)

Grn/Blk

Brake Switches

Clutch Switch

Instrument Cluster

Bulb Monitor Unit

Heated Grips

Aux. Instruments

Radio Connector

2

Ignition Switch

Gray

7.5

(Switched)

Gra/Wht

Front Parking Light

Bulb Monitor Unit

3

Battery

Red

15

(Unswitched)

Red/Wht

Instrument Cluster Clock

Flasher Relay

4

Battery

Red

15

(Unswitched)

Red/Grn

Power Socket

5

Battery

Red

15

(Unswitched)

Red/Yel

Alarm Connector

Radio Connector

6

Fuel Injection Relay

(87)

Grn/Red

7.5

(Switched)

Grn/Wht

Fuel Pump

Thermo Relay

-7-

Load Shed Relay

(30)

Grn/Blu

15

(Switched)

Grn/Brn

Thermo Relay (Fan)

Flasher Relay

Horn Relay

Alarm Connector

Fuses For K1 & K100RS4V:

#

From

Wire

Fuse

Wire

To

1

Kill Switch

Grn/Yel

15

(Switched)

Grn/Blk

Brake Switches

Clutch Switch

Instrument Cluster

Bulb Monitor Unit

Heated Grips

Fuel & Temp Gauges

2

Ignition Switch

Gray

15

(Switched)

Gra/Wht

Front Parking Light

Bulb Monitor Unit

3

Battery

Red

15

(Unswitched)

Red/Wht

Instrument Cluster Clock

Flasher Relay

4

Battery

Red

15

(Unswitched)

Red/Grn

Power Socket

Alarm Connector

5

Battery

Red

15

(Unswitched)

Red/Yel

Motronic Control Unit

Motronic Relay

6

Battery

Red

15

(Unswitched)

Red/Grn

Fuel Pump Relay

-7-

Load Shed Relay

(87)

Grn/Blu

15

(Switched)

Grn/Brn

Fan Relay

Flasher Relay

Horn Relay

Alarm Connector

Fuses For 1993 & Earlier K1100LT:

#

From

Wire

Fuse

Wire

To

1

Kill Switch

Grn/Yel

15

(Switched)

Grn/Blk

Brake Switches

Bulb Monitor Unit

Heated Grips

Fuel & Temp Gauges

2

Ignition Switch

Gray

15

(Switched)

Gra/Wht

Front Parking Light

Bulb Monitor Unit

3

Battery

Red

15

(Unswitched)

Red/Wht

Instrument Cluster Clock

Flasher Relay

4

Battery

Red

15

(Unswitched)

Red/Grn

Power Socket

Alarm Connector

5

Battery

Red

15

(Unswitched)

Red/Yel

Motronic Control Unit

Motronic Relay

6

Battery

Red

15

(Unswitched)

Red/Grn

Fuel Pump Relay

-7-

Load Shed Relay

(87)

Grn/Blu

15

(Switched)

Grn/Brn

Fan Relay

Flasher Relay

Horn Relay

Windscreen Switch

Alarm Connector

8

Ignition Switch

Violet

15

(Switched)

Vio/Blk

Radio

Map Light

9

Battery

Red

15

(Unswitched)

Red/Blu

Radio

Windscreen Relays

Fuses For 1994 & Later K1100LT:

#

From

Wire

Fuse

Wire

To

1

Motronic Relay

Grn/Blk

15

(Switched)

Grn/Blk

Brake Switches

Bulb Monitor Unit

Heated Grips

Fuel & Temp Gauges

2

Ignition Switch

Gray

15

(Switched)

Gra/Wht

Front Parking Light

Bulb Monitor Unit

3

Battery

Red

15

(Unswitched)

Red/Wht

Instrument Cluster Clock

Flasher Relay

4

Battery

Red

15

(Unswitched)

Red/Grn

Power Socket

Alarm Connector

5

Battery

Red

15

(Unswitched)

Red/Yel

Motronic Control Unit

Motronic Relay

6

Battery

Red

15

(Unswitched)

Red/Grn

Fuel Pump Relay

-7-

Load Shed Relay

(87)

Grn/Blu

15

(Switched)

Grn/Brn

Fan Relay

Flasher Relay

Horn Relay

Windscreen Switch

Alarm Connector

8

Ignition Switch

Violet

15

(Switched)

Vio/Blk

Radio

Map Light

9

Battery

Red

15

(Unswitched)

Red/Blu

Radio

Windscreen Relays

Fuses For 1994 & Later K1100RS:

#

From

Wire

Fuse

Wire

To

1

Motronic Relay

Grn/Blk

15

(Switched)

Grn/Blk

Brake Switches

Bulb Monitor Unit

Heated Grips

Fuel & Temp Gauges

2

Ignition Switch

Gray

15

(Switched)

Gra/Wht

Front Parking Light

Bulb Monitor Unit

3

Battery

Red

15

(Unswitched)

Red/Wht

Instrument Cluster Clock

Flasher Relay

4

Battery

Red

15

(Unswitched)

Red/Grn

Power Socket

Alarm Connector

5

Battery

Red

15

(Unswitched)

Red/Yel

Motronic Control Unit

Motronic Relay

6

Battery

Red

15

(Unswitched)

Red/Grn

Fuel Pump Relay

-7-

Load Shed Relay

(87)

Grn/Blu

15

(Switched)

Grn/Brn

Fan Relay

Flasher Relay

Horn Relay

Alarm Connector



Adding Fuses:

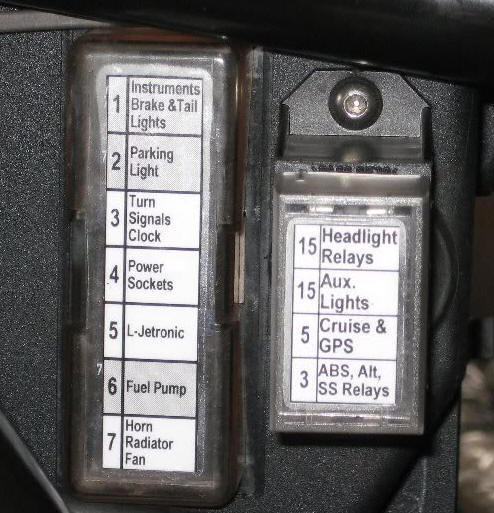

When I add electrical stuff to my K bikes I don't like adding in-line fuses because I think they're a ghetto way to do things. So I add a mini fuse block right next to the factory fuses:

Instructions on how to do this can be found at this link.

Adding Fuses To A K1, K100RS4V or K1100:

K1s, K100RS4Vs and K1100s have  empty fuse slots at the bottom that can be used for adding your own. Here's an example where I added three fuses to a K1100RS:

Instructions on how to do this can be found at this link.
