Add A Fuse To The OEM Fuse Block

(K100RS4V, K1100RS, K1100LT)

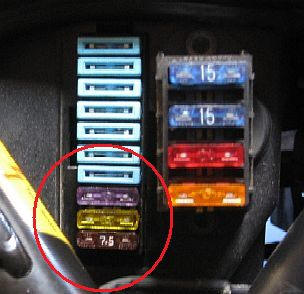

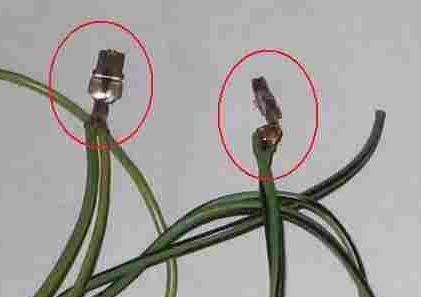

 The factory fuse blocks for the bikes listed above have empty fuse slots at the bottom (3 on the K100RS4V/K1100RS and 1 on the K1100LT.)  Using fuse terminals from another 4V K bike's fuse block you can add new fuses to these empty slots.

In the middle of the fuse block there is a white bar that helps hold the fuse terminals in place. Push that bar out, insert the "new" terminals and then replace the white bar.
